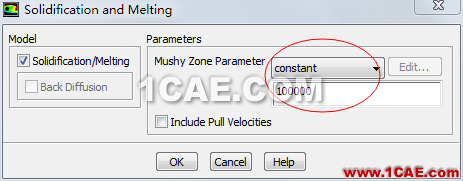

在使用fluent的融化凝固模型的時候,必須輸入一個mushy參數,如下圖所示
在根據翻譯為糊狀系數,默認值為1e5,那什么叫糊狀系數呢?
下面是ansys原始文檔,根據該文檔有幾點需要說說:
1、該值一般不需要特別輸入,保持默認值大多數情況都可以,一般范圍為1e4——1e7之間
2、mushy zone constant是一個系數,該系數是用于動量公式里面,如公式18-6所示
3、該值越大材料凝固的速度越小,特別大的值可能會導致求解收斂困難。
18.5. Momentum Equations
The enthalpy-porosity technique treats the mushy region (partially solidified region) as a porous medium. The porosity in each cell is set equal to the liquid fraction in that cell. In fully solidified regions, the porosity is equal to zero, which extinguishes the velocities in these regions. The momentum sink due to the reduced porosity in the mushy zone takes the following form:
(18–6)
where is the liquid volume fraction, is a small number (0.001) to prevent division by zero, is the mushy zone constant, and is the solid velocity due to the pulling of solidified material out of the domain (also referred to as the pull velocity).
The mushy zone constant measures the amplitude of the damping; the higher this value, the steeper the transition of the velocity of the material to zero as it solidifies. Very large values may cause the solution to oscillate.
The pull velocity is included to account for the movement of the solidified material as it is continuously withdrawn from the domain in continuous casting processes. The presence of this term in Equation 18–6 allows newly solidified material to move at the pull velocity. If solidified material is not being pulled from the domain, . More details about the pull velocity are provided in Pull Velocity for Continuous Casting.
